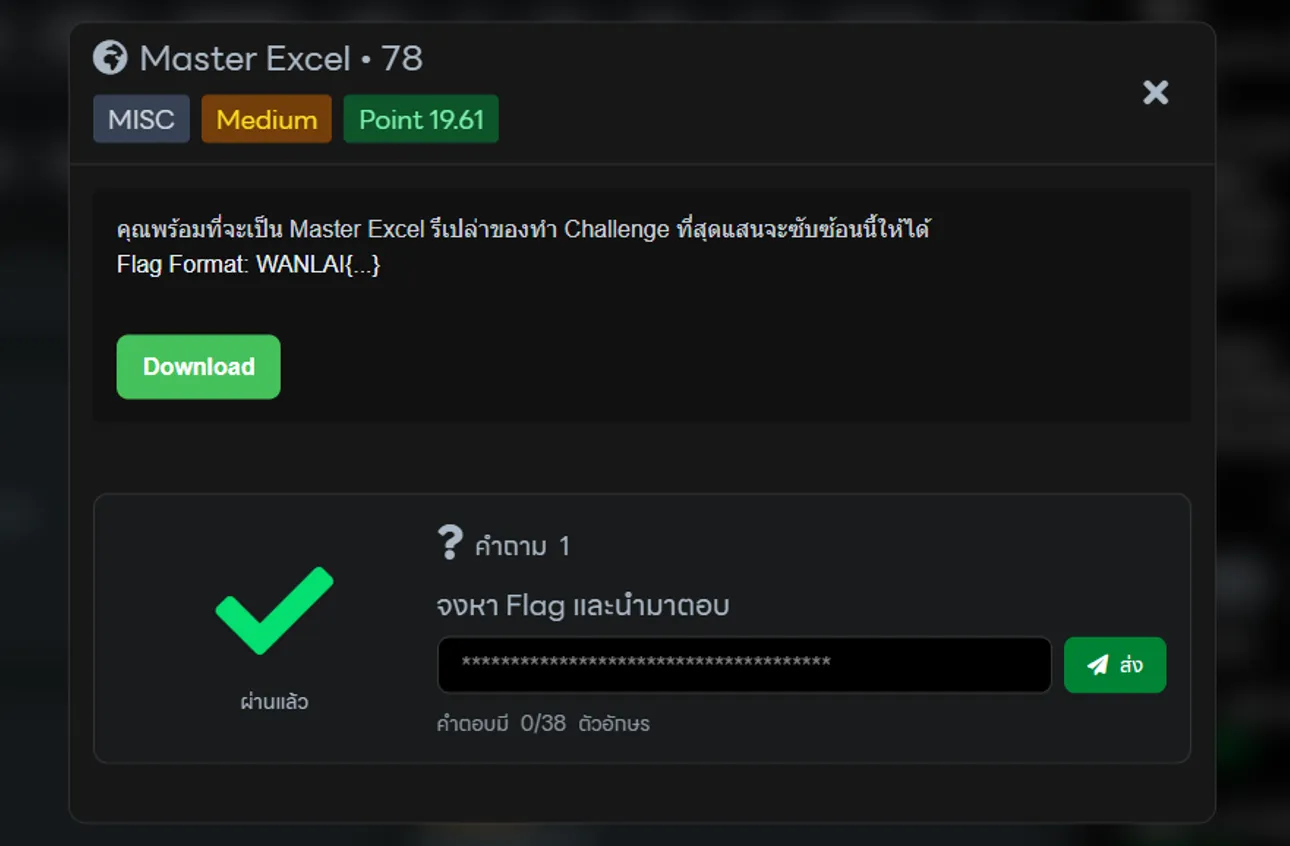

โจทย์นี้จะมาพร้อมกับไฟล์ wanlai_excel.xlsm

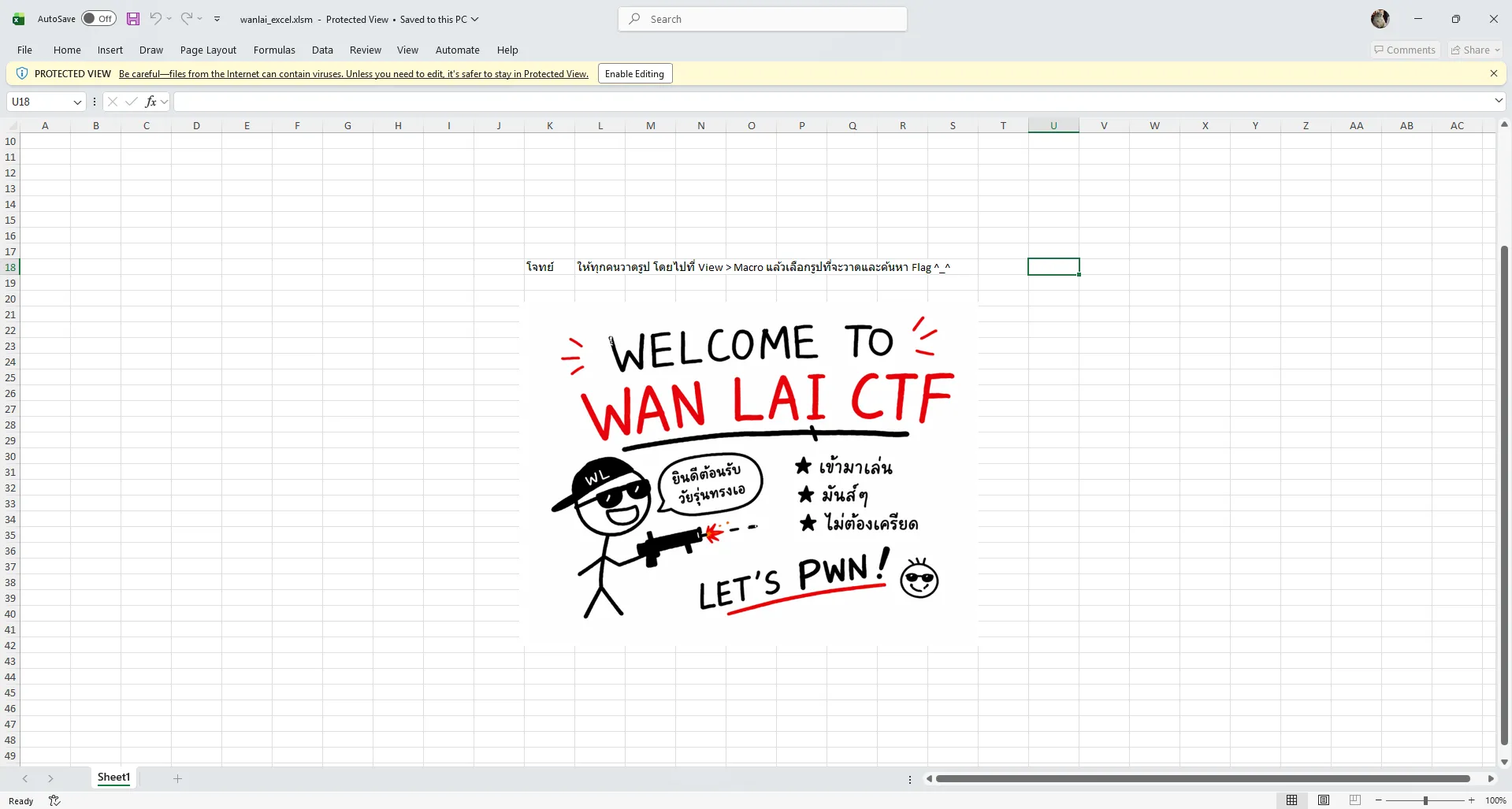

มีข้อความใน Excel แสดงว่า โจทย์ ให้ทุกคนวาดรูป โดยไปที่ View > Macro แล้วเลือกรูปที่จะวาดและค้นหา Flag ^_^ งั้นก็ทำตามที่โจทย์บอกกันดีกว่า

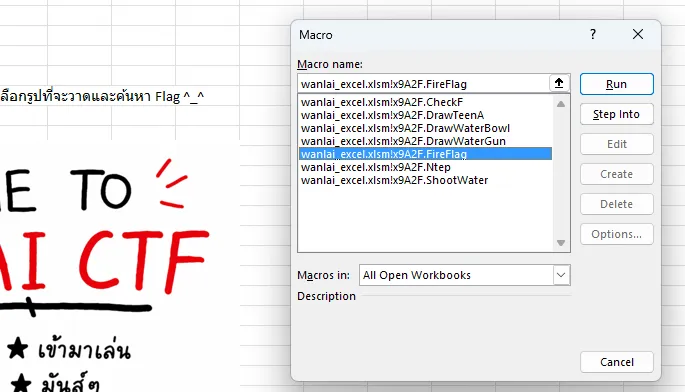

เจอ FireFlag ด้วย ลองกดรันดู

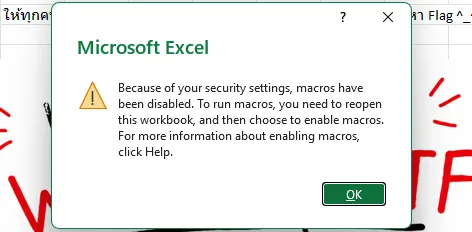

พบว่ามันจะกดรันไม่ได้ต้องไปปลดล็อคมันก่อน

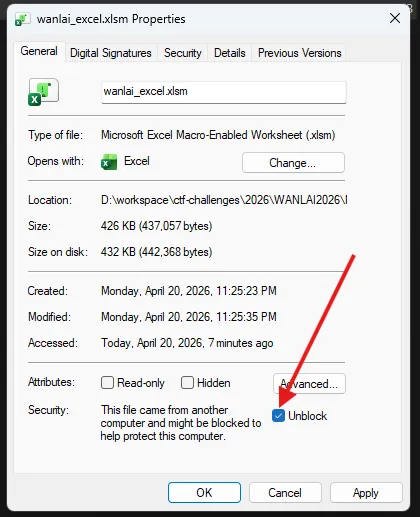

  1. ไปที่ไฟล์ในโฟลเดอร์ คลิกขวาที่ไฟล์ wanlai_excel.xlsm เลือก Properties
  2. ที่แท็บ General ด้านล่างสุด ถ้าเห็นคำว่า Unblock ให้ติ๊กถูกแล้วกด OK image
  3. เปิดไฟล์ขึ้นมาใหม่ คราวนี้จะมีแถบสีเหลืองด้านบนเขียนว่า “Enable Content” ให้กดปุ่มนั้นครับ

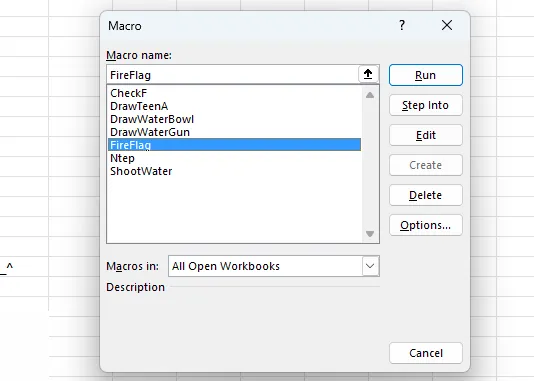

จากนั้นทำการเข้าไปที่ View > Macro ใหม่อีกครั้ง image

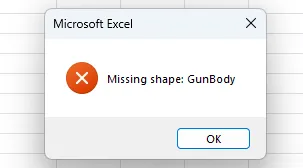

ลองกด RUN แล้วพบกับ ERROR image

แต่รอบนี้มีปุ่ม Edit ที่เราสามารถกดได้ งั้นลองกดดู image

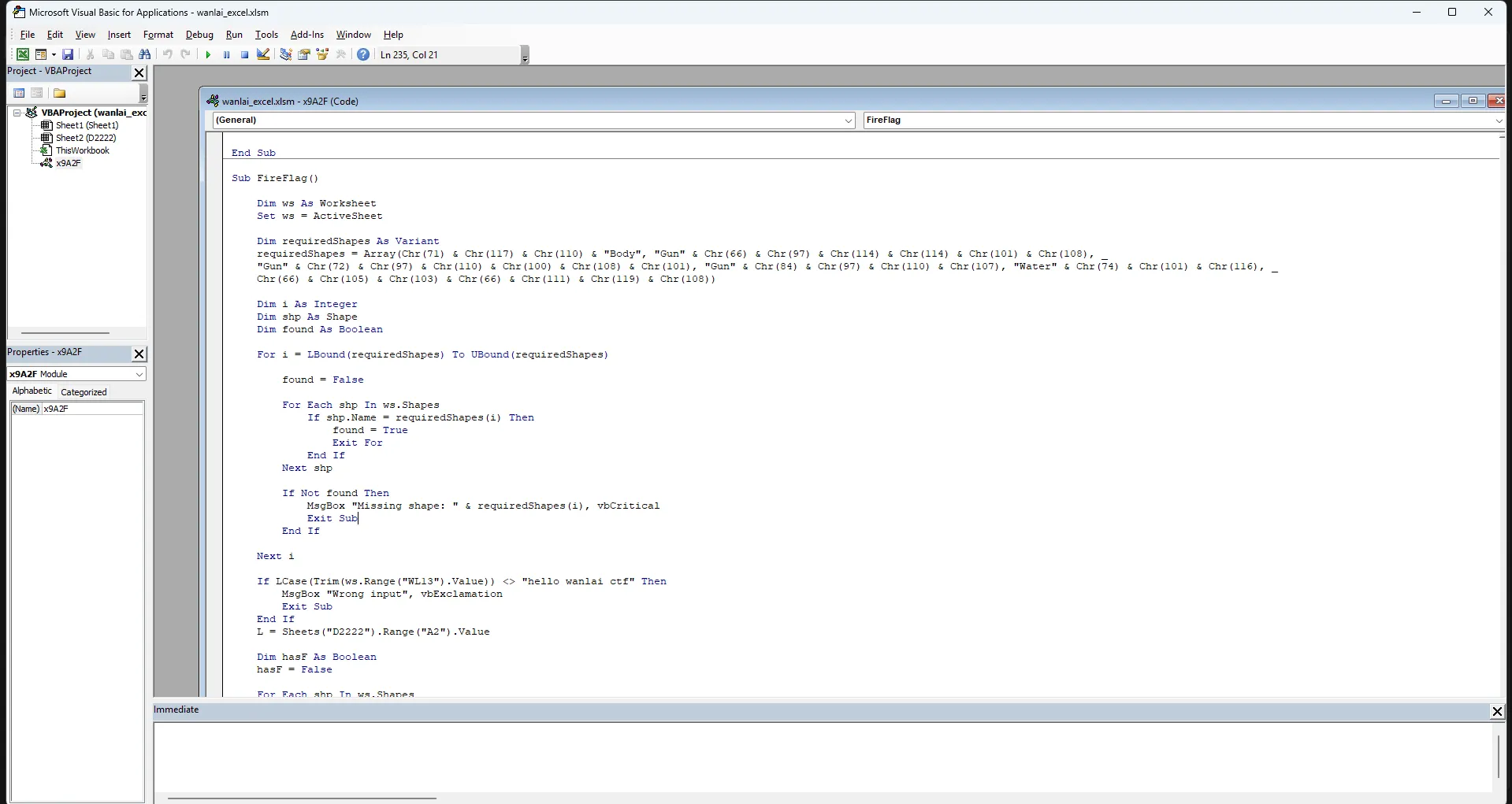

ซึ่งเราจะเจอกับหน้าต่าง VBA Editor กับ Code

Sub FireFlag()
Dim ws As Worksheet
Set ws = ActiveSheet
Dim requiredShapes As Variant
requiredShapes = Array(Chr(71) & Chr(117) & Chr(110) & "Body", "Gun" & Chr(66) & Chr(97) & Chr(114) & Chr(114) & Chr(101) & Chr(108), _
"Gun" & Chr(72) & Chr(97) & Chr(110) & Chr(100) & Chr(108) & Chr(101), "Gun" & Chr(84) & Chr(97) & Chr(110) & Chr(107), "Water" & Chr(74) & Chr(101) & Chr(116), _
Chr(66) & Chr(105) & Chr(103) & Chr(66) & Chr(111) & Chr(119) & Chr(108))
Dim i As Integer
Dim shp As Shape
Dim found As Boolean
For i = LBound(requiredShapes) To UBound(requiredShapes)
found = False
For Each shp In ws.Shapes
If shp.Name = requiredShapes(i) Then
found = True
Exit For
End If
Next shp
If Not found Then
MsgBox "Missing shape: " & requiredShapes(i), vbCritical
Exit Sub
End If
Next i
If LCase(Trim(ws.Range("WL13").Value)) <> "hello wanlai ctf" Then
MsgBox "Wrong input", vbExclamation
Exit Sub
End If
L = Sheets("D2222").Range("A2").Value
Dim hasF As Boolean
hasF = False
For Each shp In ws.Shapes
If shp.Name = "Head" Or _
shp.Name = "Hair" Or _
shp.Name = "Body" Or _
shp.Name = "Leg" Then
hasF = True
Exit For
End If
Next shp
Call ShootWater
On Error Resume Next
ws.Shapes("AG").Delete
On Error GoTo 0
k = Sheets("D2222").Cells(1, 1).Value
Dim ag As Shape
Set ag = ws.Shapes.AddTextbox( _
msoTextOrientationHorizontal, _
ws.Range("J2").Left, _
ws.Range("J2").Top, _
320, 50)
ag.Name = "AG"
If hasF Then
ag.TextFrame.Characters.Text = k
ag.Fill.ForeColor.RGB = RGB(120, 0, 0)
ag.TextFrame.Characters.Font.Color = RGB(255, 200, 200)
Else
ag.TextFrame.Characters.Text = L
ag.Fill.ForeColor.RGB = RGB(0, 0, 0)
ag.TextFrame.Characters.Font.Color = RGB(0, 255, 0)
End If
ag.TextFrame.Characters.Font.Size = 16
Dim stepY As Integer
For stepY = 1 To 2
ag.Top = ag.Top - 5
DoEvents
Application.Wait Now + TimeValue("00:00:01")
Next stepY
End Sub

วิเคราะห์ Code

  1. Macro เช็คว่าในหน้า Excel ของคุณมีรูปภาพหรือ Object ที่ชื่อว่า GunBody, GunBarrel, GunHandle, GunTank, WaterJet, BigBowl ไหม
  2. คุณต้องไปที่ Cell WL13 แล้วพิมพ์ว่า hello wanlai ctf (ตัวพิมพ์เล็กทั้งหมด)
If LCase(Trim(ws.Range("WL13").Value)) <> "hello wanlai ctf" Then
  1. ผมเจอตัวแปลก ๆ อะไรสักอย่าง
L = Sheets("D2222").Range("A2").Value

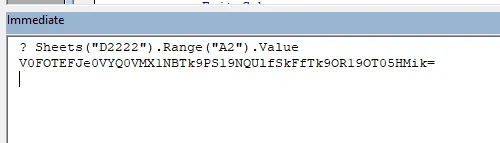

งั้นลองอ่านมันดูเลยละกัน ตัวแปลแปลก ๆ นั้น โดยทำการกด Ctrl + G ในหน้าต่างของ VBA Editor แล้วของใส่ Sheets("D2222").Range("A2").Value ลงไป


จะพบกับข้อความที่เป็น Base64 งั้นเรามาถอดรหัสกันเลยดีกว่า


ได้ Flag แล้ว

WANLAI{EXCEL_SANOOK_MAI_JA_NONG_NONG2)
